Automated Precision for Zero-Pollution Concrete Logistics

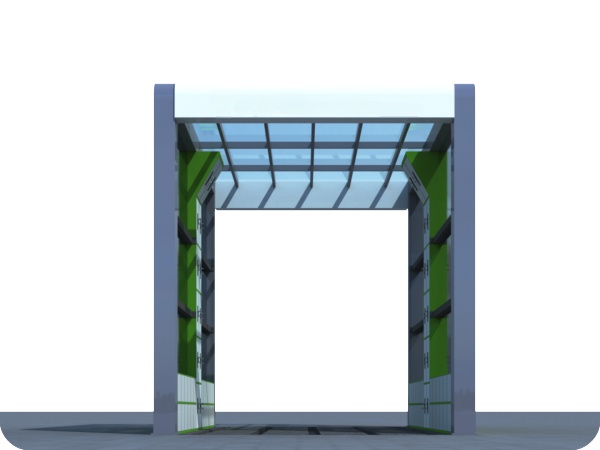

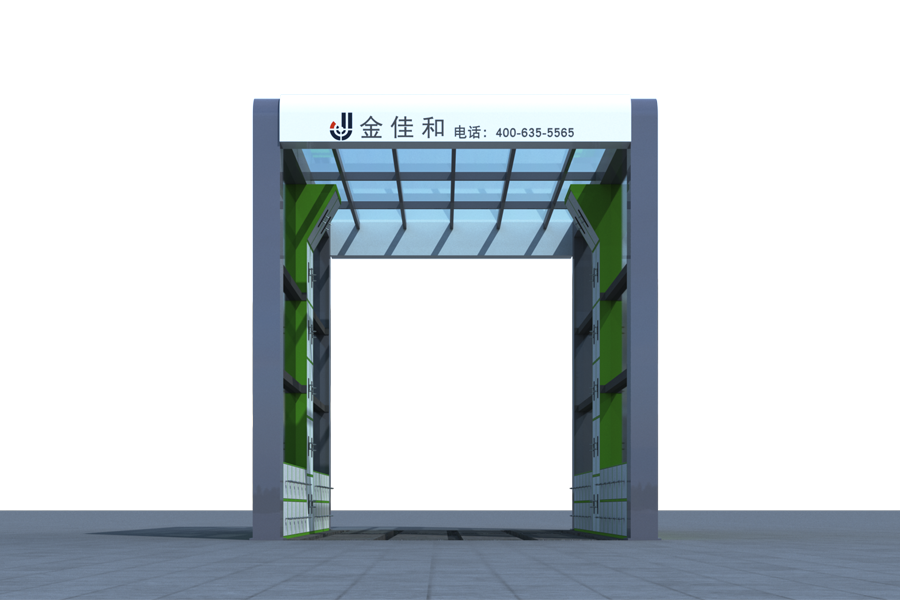

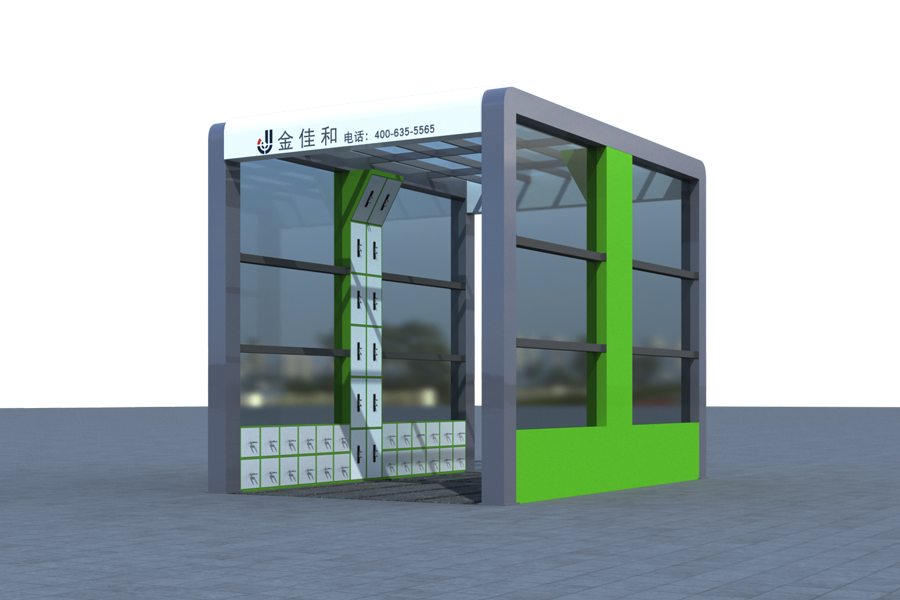

The LX-510LXJ Gantry Truck Washer serves as the ultimate automated environmental safeguard for modern concrete recycling facilities. Utilizing advanced 360-degree high-pressure washing technology, it efficiently and comprehensively removes mud, slurry, and concrete residues from heavy transport vehicles, ensuring they leave the site completely clean. Its intelligent, automated operation not only drastically reduces manual labor but also features a water recycling loop that maximizes resource efficiency. By seamlessly integrating into the concrete recovery system, the LX-510LXJ guarantees strict compliance with stringent environmental regulations, prevents road contamination, and reinforces the facility's commitment to sustainable, zero-discharge green construction.
Item | LX-510LXJ Gantry Truck Wash Machine Specification | |
Equipment Size | 5100*4600*5000mm | |
Cleaning Method | Vehicle-passing, the nozzle swings. | |
Number of Nozzles | 48Pcs | |
Water Consumption | 333L/MIN | |
Control Method | Infrared sensing, human-machine interface, wireless remote control | |
Main Water Pump | Brand | Nanfang Pump Industry |
| Material | Stainless steel impeller | |
| Model | 65CDL32-90 | |
| Max head | 124 M | |
| Max flow rate | 32m³/H | |
Swing Arm Reducer | Model | RV50-30-550W-AS |
Motor | 15KW | |
| Electronic Parts | Delta, Delixi, Omron | |
| Main Framework | Square Pipe (Q235) | 300*300*4.75mm（Q235） |
| Storefront Signboard | Square Pipe (Q235) | 300*600*4.75mm（Q235） |
| Wall Body | Plastic-coated square box / High-transparency PC window | Hot-dip galvanized plate welded box / high-transparency PC window 6mm |
| Stainless Steel Nozzle | Stainless steel | 48PCs |
| Inductive System | Diffuse reflection sensor | Double beam |
| Side Water Spray System | Motor / speed controller / water spray assembly | Square tube, motor |
| Control System | Electrical control box, electrical appliances, human-machine interface, PLC fully automated control system, etc. | Optoelectronic, automatic |
| Pump | Stainless steel centrifugal high-pressure pump | 15KW*1 |
Water Supply Pipeline | Galvanized pipe | Φ75mm |
| Outer Sealing Sheet | Two Sides: highly transparent PC sheets Top: 6mm thick transparent sunlight sheet | Whole Set Standard Equipped |
>> Features three operational modes
1. Mechanical Auto-Sensing: Automatic activation upon vehicle detection
2. Remote Control: Wireless operation
3. Manual Control: Direct panel operation
>> Water Management
Incorporates closed-loop water recycling technology
Requires only minimal fresh water replenishment during continuous operation
Delivers significant water savings
>> Industrial Applications
Ideal for controlling dust pollution at:
Construction sites
Mining operations
Cement product facilities
Coal mines
Power plants
Landfill sites
Ensures compliant, dust-free vehicle exit from controlled zones.
